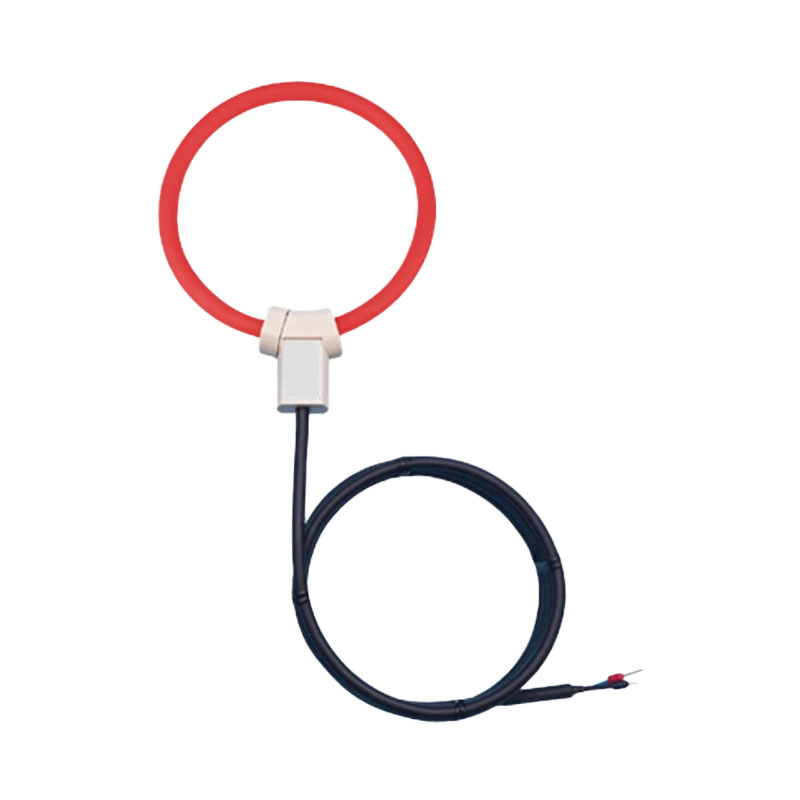

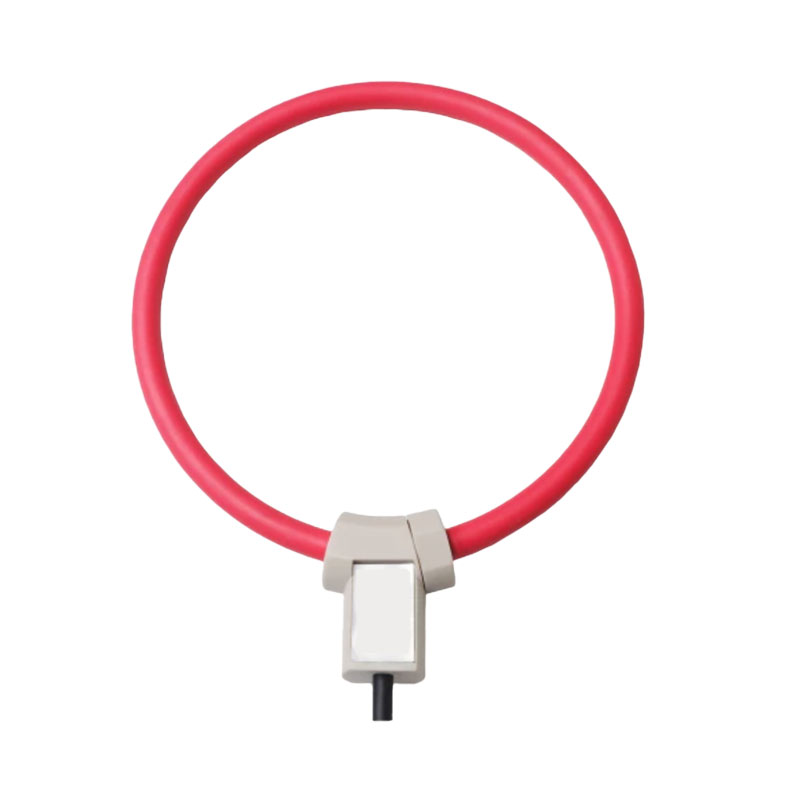

Flexible Roche coil current transformer (FCT) can monitor AC currents up to 100kAmps. They can be opened and flexible, making it easy to install around busbars and multiple wires.

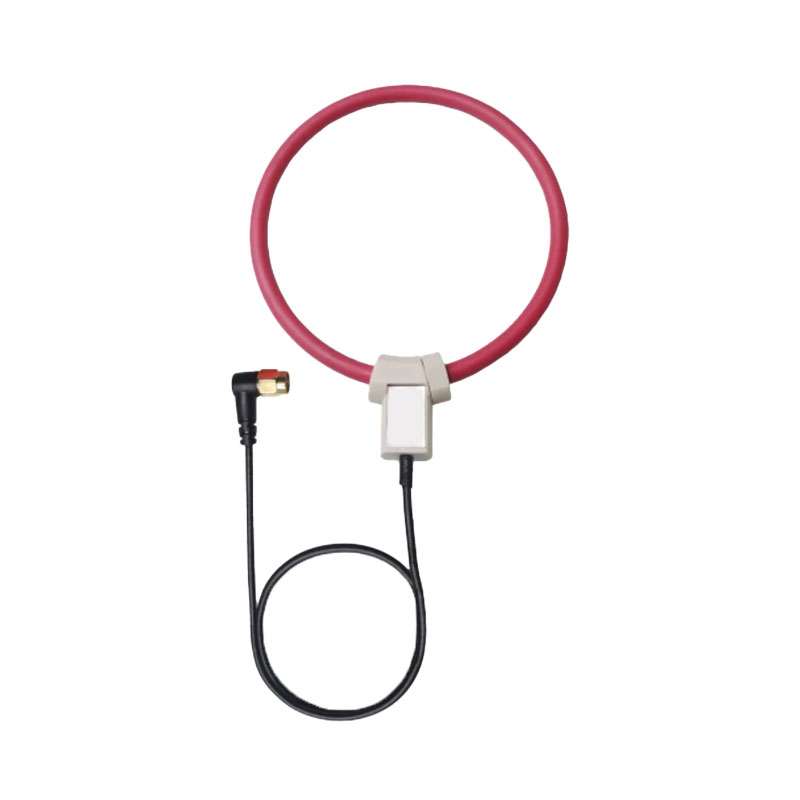

FCT-h is a high-frequency flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system. Suitable for energy consumption monitoring, high-frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to requirements.
| MODEL | FCT-h-200 | FCT-h-240 | FCT-h-300 | other |
| Perimeter | 200 mm | 350 mm | 510 mm | |
| Bore size | 60 mm | 105 mm | 150 mm | |
| Resistance | 10 - 300 Ω | |||
| Section | 8 mm | |||
| Line length | 2 m， Customizable | |||
| Reference current | 1 A - 1000 kA | |||
| Calibration | 1.1 mV/kA @ 50 Hz ± 5 % | |||
| Not calibrated | 30 mV/kA @ 50 Hz ± 5 % | |||
| Internal resistance | 200 ppm/℃ | |||
| Excellent linearity |
| High dynamic range, 1 A to 1000 kA |
| Strong overload capability |
| Little interference from adjacent conductors |
| No danger of open circuit high voltage |
| Zero power consumption |
| Small position error |
| Soft and lightweight, easy to install |
| Good linearity |
